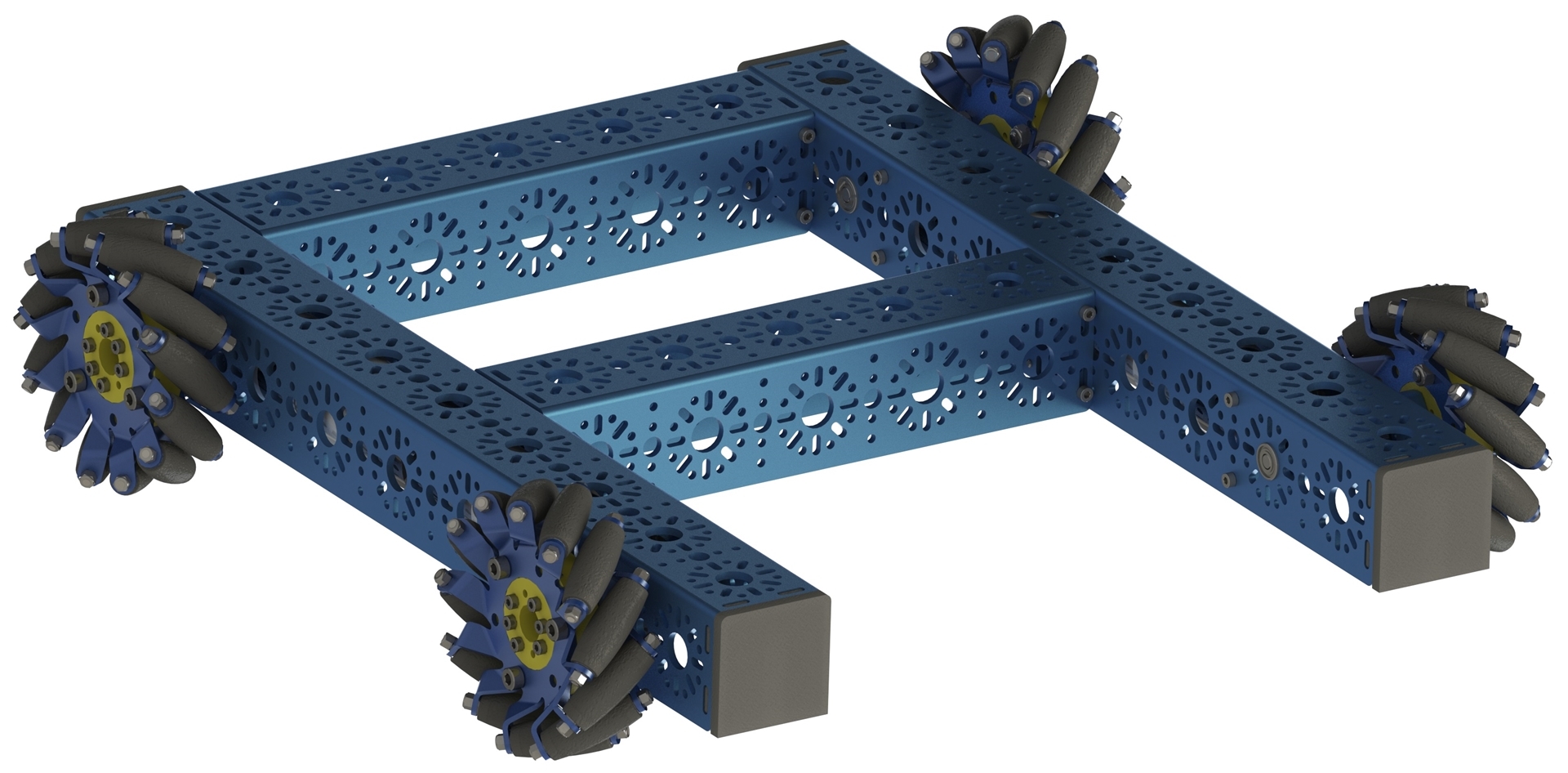

FTC Drive Base Chassis Kit

Made of aluminum, the Studica Clamping Shaft Hub is used with flex and drive wheels

Specifcation:

• Material: 6061-T6 Aluminum
• 6mm ID
• Hole pattern for connecting to structure
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Number of teeth: 24
• Step File

• For 5.5mm nuts
• CRV material
• heat treatment
• surface matt chrome plated
• 100mm exposure shank
• socket head cold heading treatment

The 100mm Slim Mecanum Wheel Set comes with 2 left and 2 right, and steel ball bearings. With blue steel frame and black rollers.  The wheel is comprised of 12 black rollers and is able to move in any direction. Rollers are set at 45° to the axis of rotation of the wheel.

Rollers are mounted with steel ball bearings, making the roll more fluent.

 Wheel Specifications:

• Diameter:                                                100mm
• Width:                                                     38m
• Number of Rollers:                                 12
• Number of Plates for each wheel:          2
• Body material:                                        Steel
• Roller material:                                       Polyethylene (PE) and Polypropylene (PP)
• Spacer Material:                                     Delrin

The following hubs (purchased seperately) will work with these wheels

The Studica T-Slot Extrusion is available in 10 different lengths from 48mm to 1000mm. It is strong while light weight. It can be easily cut to your own custom size. It has a 14mm through hole that will fit the Studica 6mmID x 14mmOD Flanged Bearing or Bronze Bushing. It uses the M3 T-Slot Nut Hammer Head Series 20.  It also has four M3 threaded holes on each end. Use it as structure on infinite applications.

Specifcations,

• Material:  6061-T6 Aluminum
• Length: 1,000mm
• Weight: 2.5kg
• Step File

The M3 T-Slot Nut 100 pack, is a Hammer Head Series 20 and is used with any M3 screw and fits the Studica T-Slot Extrusions.

• 48mm T-Slot Extrusion
• 96mm T-Slot Extrusion
• 144mm T-Slot Extrusion
• 192mm T-Slot Extrusion
• 240mm T-Slot Extrusion
• 288mm T-Slot Extrusion
• 336mm T-Slot Extrusion
• 384mm T-Slot Extrusion
• 432mm T-Slot Extrusion
• 1000mm T-Slot Extrusion

Includes,

• 2 x 76162-2 - 6mm x 432mm D-Shaft (2 pack)
• 2 x 76161-6 - 6mm x 96mm D-Shaft (6 pack)
• 2 x 76160-6 - 6mm x 70mm D-Shaft (6 pack)
• 1 x 76159-6 - 6mm x 35mm D-Shaft (6 pack)
• 1 x 76303-2 - Coupling 6mm ID D-Shaft, 12mm OD (2 pack)
• 2 x 76308-6 - Shaft Spacer Plastic 6mm ID x 10mm OD x 20mm L (6 pack)
• 3 x 76304-6 - Collar 6mm ID D-Shaft, 12mm OD (6 pack)
• 2 x 76306-24 - Shaft Spacer Plastic 6mm ID x 10mm OD x 2mm L (24 pack)
• 2 x 76305-24 - Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack)

The #25 Chain with Master Links  set works with any of the Studica sprockets and other #25 sprockets. It includes 4 master links for creating various lengths of the chain.

Specifications:

• #25 Steel roller chain
• 4 master connecting links
• Length: 150cm
