Sport Gearbox Mount Bracket

This is a heavy-duty compression lug from BURNDY for 06 AWG wire. This compression log can be easily crimped with the Cable Lug Crimping Tool.

Specifications

• Gauge: 06 AWG
• Hole Size For Stud: 0.25 in.
• Material: Copper
• Overall Length: 2.03 in.
• Tongue Width: 0.48 in.
• Weight: 0.01 lbs
• Wire Strip Length: 1.18 in.

This 20 Amp fuse is used in FIRST Tech Challenge batteries and the FIRST Robotics Competition Power Distribution Panel (am-2856).

Specifications:

• Color: Yellow
• Amps: 20
• Max Voltage: 32
• Style: MINI®
• Specification: SAE J2077
• Type: Blade Fuse

This is a 10mm Key Hub. This hub fits all AndyMark wheels.

The machine key is not included with the hub.

Specifications:

• Material: 6061 Aluminum
• Bore: 10mm (0.374 inch), with a 4mm (0.157 inch) keyway
• Bolt Pattern: Six - 0.204" diameter holes, evenly spread on a 1.875" diameter bolt circle.
• Finish: tumbled
• Outside diameter: 2.25 inches
• Weight: 0.11 pound

This Heavy Duty (HD) omni wheel is a vast improvement over our older 6" omni wheels and other wheels on the market. The body has been totally redesigned with durability and mobility in mind. The design intent is to provide a smooth roll along with the ability to handle impacts very well.

The body is made from black polycarbonate, while the rollers are each molded with a nylon core and TPU tread. These rollers spin smoothly on a captured dowel pin.

Specifications:

• Diameter: 6 inches
• Width Across Middle:
• Bore: 1.125 inch diameter x 0.36" deep with a 0.96" diameter thru hole
• Bolt Pattern: 6 holes (0.157 in.) on a 1.875 inch bolt circle
• Body Material: Black polycarbonate
• Load Capacity: 120 pounds
• Weight: 1 Pound
• Number of Rollers: 10
• Roller Material, Outside: Gray TPU rubber
• Roller Durometer: 77A
• Roller Material, Inside: white nylon
• Roller Bearing Material: nylon spinning on steel
• Roller Axle: 1/8" diameter steel dowel pin
• Assembled and Repairable by installing or removing 10-24 screws
• Half inch id bearings pre-pressed into hub

Individual Components within this Part:

• One - Interior polycarbonate body piece
• Two - Outer polycarbonate body pieces
• Ten - Rollers
• Ten - Steel Dowel Pins
• Ten - Thread Forming Screws
• Two - 1/2" id Bearing, Shielded (R8ZZ) (am-0181)

This is a package of FOUR stick-on numbers, designed to be adhered to robot bumper material.

Specifications:

• Quantity: 4
• Material: White stick-on plastic
• Height: 4 inches
• Width: 2.6 inches
• Line width: 0.8 inch
• Weight: 0.004 pounds

Usage (for best application):

• Apply heat to cloth area using a heat gun or hairdryer for 30 seconds (prior to placing number). Do not put heat on or near pool noodles, as they will shrink.
• Place numbers in position on bumper material as desired with pressure.
• Apply heat to numbers using a heat gun or hairdryer for 30 seconds.
• Place under a static load for 5 minutes.

This is a package of FOUR stick-on numbers, designed to be adhered to robot bumper material.

Specifications:

• Quantity: 4
• Material: White stick-on plastic
• Height: 4 inches
• Width: 2.6 inches
• Line width: 0.8 inch
• Weight: 0.004 pounds

Usage (for best application):

• Apply heat to cloth area using a heat gun or hairdryer for 30 seconds (prior to placing number). Do not put heat on or near pool noodles, as they will shrink.
• Place numbers in position on bumper material as desired with pressure.
• Apply heat to numbers using a heat gun or hairdryer for 30 seconds.
• Place under a static load for 5 minutes.

This is a package of FOUR stick-on numbers, designed to be adhered to robot bumper material.

Specifications:

• Quantity: 4
• Material: White stick-on plastic
• Height: 4 inches
• Width: 2.6 inches
• Line width: 0.8 inch
• Weight: 0.004 pounds

Usage (for best application):

• Apply heat to cloth area using a heat gun or hairdryer for 30 seconds (prior to placing number). Do not put heat on or near pool noodles, as they will shrink.
• Place numbers in position on bumper material as desired with pressure.
• Apply heat to numbers using a heat gun or hairdryer for 30 seconds.
• Place under a static load for 5 minutes.

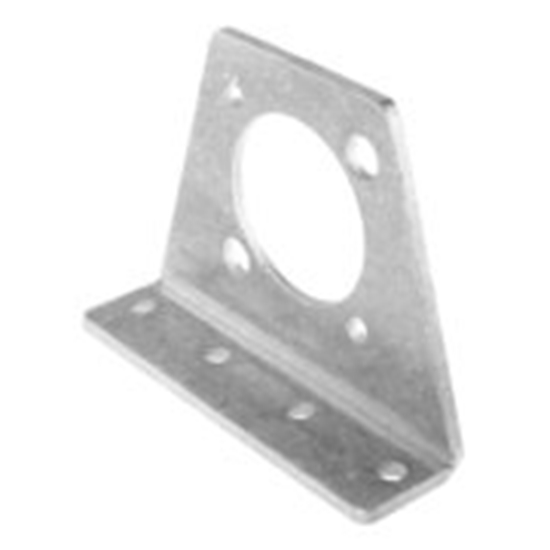

This simple bracket handles so many of your mounting needs! Mount motors or gearboxes anywhere and make axle supports with bearings - it's a do-it-all, put-it-anywhere bearing and motor mount bracket.

Any motor or gearbox with a 2-inch diameter bolt circle can be mounted in this bracket. The center hole is sized to hold a standard 1.125 inch outside diameter bearing.

Examples of motors with a 2 in. diameter bolt circle:

• 2.5 in. CIM Motor
• NEO Brushless Motor

Examples of gearboxes with a 2 in. diameter bolt circle

• PG Series Gearboxes
• 57 Sport Gearbox
• CIM Sport Gearbox
• Falcon Sport Gearbox
• DeCIMate Gearbox

Specifications

• Depth: 1 in.
• Height: 2.679 in.
• Length: 3.5 in.
• Material: 5052 Aluminum
• Thickness: 0.13 in.
• Weight: 0.104 lbs

Documents

Layout Print(s)

am-4244 1IN Pitch Bent Motor and Bearing Bracket REV2.PDF

CAD File(s)

am-4244 1IN Bent Bearing Side Mount Gusset.STEP
