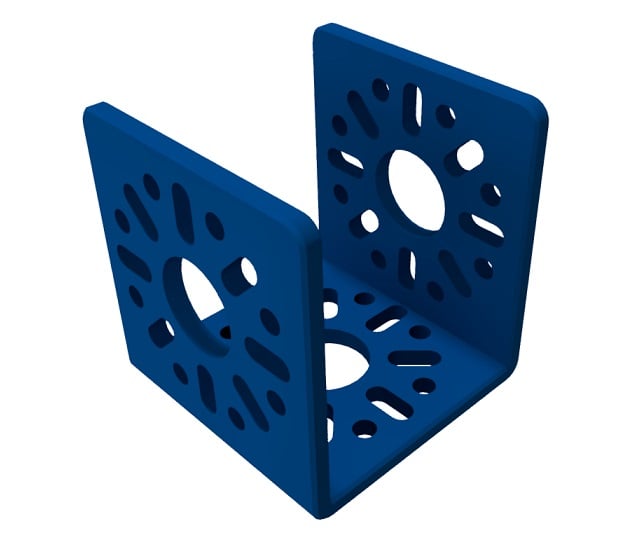

    Inside U Bracket (2 pack)

    Soyez le premier a tester ce produit

    Made from 3mm thick heavy 6061-T6 Aluminum, the Inside U Bracket is 42mm x 45mm and is used inside the U Channel or Low profile channel.. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material - Anodized 6061-T6 Aluminum
    • Thickness - 3mm
    • Step File
    # Pièce: 76086-2
    $8.32
    Disponibilité: 135 en stock

    Écrivez votre propre commentaire
    • Le produit peut être examinée que après l'achat
    • Seul les utilisateurs enregistrés peuvent écrire une critique
    • Mal
    • Excellent
