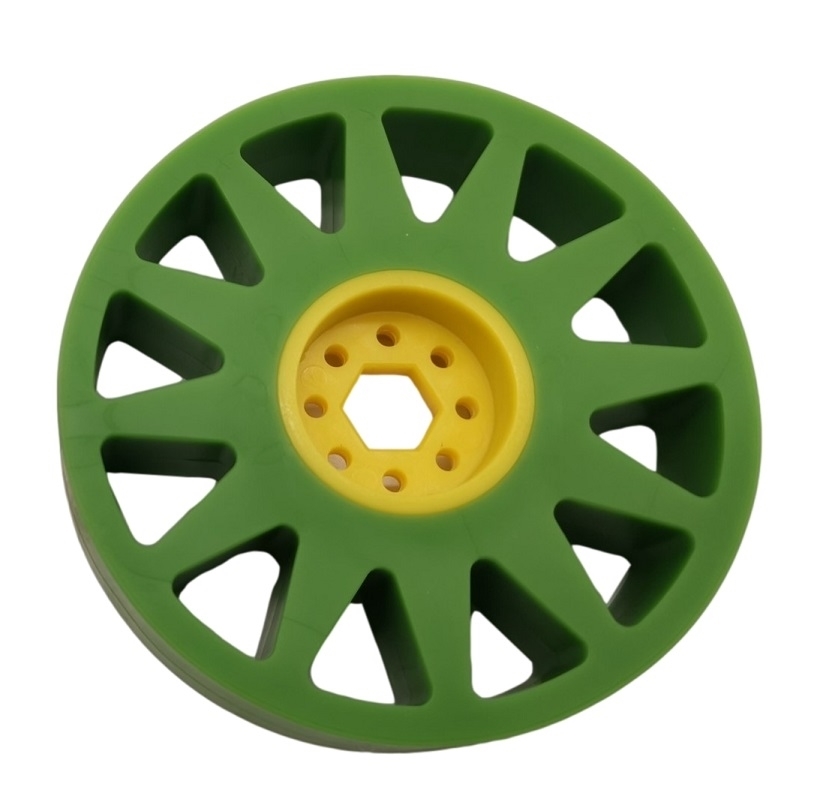

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.
Specifications:
The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.
Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.
Made of aluminum, the Studica Clamping Shaft Hub is used with flex and drive wheels
Specifcation:
The NEW 40:1Tetrix Max; TorqueNADO Motor Gearboxes give more rpm when compared to the 60:1 gearbox included with the TorqueNADO motor. These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.
Used with Studica Omni and Mecanum wheels for a strong axel hold.
The D-Shaft Collar is 6mm ID and 12mm OD. The inside diameter will fit any of the D-Shaft axels.
Specifcations:
Material: 6061-T6 Aluminum
The Studica Square Beam is 8mm by 8mm. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
This is a Heavy Duty Hex Bearing which outperforms our previous 1/2" Hex Bearings as it has a Heavy Duty Inner Race. This FR8ZZ-HexHD bearing, 1/2" hex bore, flanged, heavy duty inner race, shielded ball bearing, has an inner race that is thicker and stronger than our recent offering of a similar bearing (am-0279). This bearing has more material between the corners of the hex bore and the edge of the race making it stronger and much less likely to crack under high load. This bearing is guaranteed to have a stronger, thicker race. 100% of these bearings have been quality checked for a smooth fit over 1/2" hex stock here at AndyMark. Many of our long-time customers will recognize this bearing, as it is the same version we sold back in 2008-2011, and we did not have any failures. Now, it is renamed and quality checked for your high load needs - including drive chassis with cantilevered wheels.
Used to change motor to axle motion 90 degrees. This can be used in between the U-channel.
The Studica Slide Rail is made of light weight aluminum, is 24mm wide, and is perfect for building a multi-stage slide system. Closed length is 288m, with a 180mm stroke, creating a 470mm extended length.
IN STOCK
The Motor Mount Plate is used with the Maverick 12V DC Gear Motor (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.
The 75mm Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.
The 100mm (4") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.
The 100mm Drive Wheel (4") can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.
Studica 100mm Aluminum Mecanum Wheel w/6mm Hub. With blue aluminium frame and yellow rollers. Wheel comprised of 9 yellow rollers is able to move in any direction. Rollers are set at 45° to the axis of rotation of the wheel.
Wheel Specifications:
Hub Specifications:
Studica 100mm Aluminum Mecanum Wheel Left and Right Slant w/6mm Hub and steel ball bearings. With blue aluminium frame and yellow rollers. Wheel comprised of 9 yellow rollers is able to move in any direction. Rollers are set at 45° to the axis of rotation of the wheel. Rollers are mounted with steel ball bearings,making roll more fluent.
The 100mm (4 inch) Double Plastic Omni Wheel provides rotational and sideways 360° maneuverability. Great for omni directional movement and rotation, easy direction control and tracking, and for fast turning,
