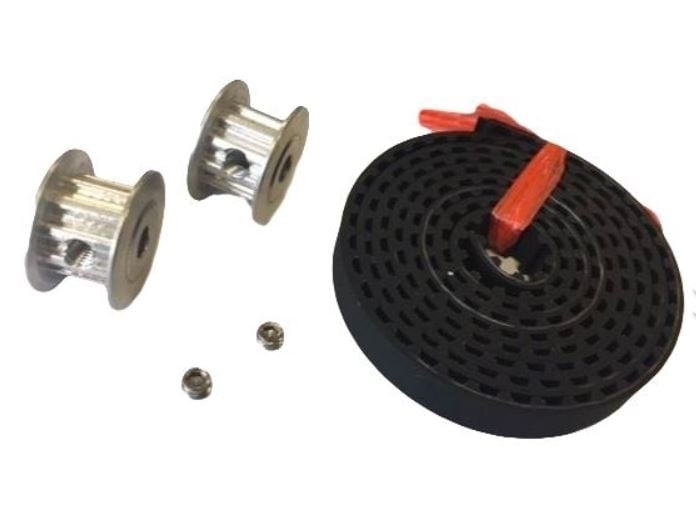

Includes two 5mm Bore, 10 Tooth Aluminum Pulleys and one 1M XL Timing belt
TETRIX MAX Motor Mount Pack attaches the DC Drive Motor to your robot. Includes the Motor Mount, two kep nuts, and two cap screws.
The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.
Made of aluminum, the Studica Clamping Shaft Hub is used with flex and drive wheels
Specifcation:
TETRIX MAX Motor Shaft Hubs attaches wheels and gears to motor shafts. Each hub comes with a screw and is made of heavy-duty aluminum.
Take your TETRIX robots to the next level with a stronger 12-volt DC motor with 100 rpm and 700 oz-in. of torque. The motor features a built-in, high-resolution Hall effect encoder for precise motor control. Based on user feedback and created specifically to withstand the stress of intense robotics competitions, this is our strongest TETRIX motor yet. TorqueNADO is compatible with allTetrix Max; DC Motor Mounts.
Specs:
The NEW 40:1Tetrix Max; TorqueNADO Motor Gearboxes give more rpm when compared to the 60:1 gearbox included with the TorqueNADO motor. These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.
The 6mm Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axel.
The Studica Flat Bracket is a very strong 3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
Made from 3mm thick heavy 6061-T6 Aluminum, the Inside L Bracket is 42mm x 45mm and is used inside the U Channel or Low profile channel.As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Used with Maverick DC Motor with 6mm shaft and all 6mm D-Shaft Axels. Matching belt 10mm Timing Belt, # 76233.
The pulleys are .40” inside the flanges to allow for belts up to 3/8” in width. Two set screws using 1.5mm hex key.
The XL series belt is compatible with the 6mm, 10 tooth XL pulley.
3/8” wide, 1/5 pitch XL series belti. Constructed of Neoprene with Fiberglass cords for superior strength and wear resistance. Compatible XL series pinion pulley.
