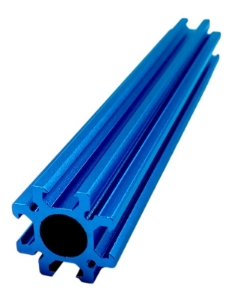

    1000mm T-Slot Extrusion

    #76119
    $22.75
    (234 In stock)

    The Studica T-Slot Extrusion is available in 10 different lengths from 48mm to 1000mm. It is strong while light weight. It can be easily cut to your own custom size. It has a 14mm through hole that will fit the Studica 6mmID x 14mmOD Flanged Bearing or Bronze Bushing. It uses the M3 T-Slot Nut Hammer Head Series 20.  It also has four M3 threaded holes on each end. Use it as structure on infinite applications.

    Specifcations,

    • Material:  6061-T6 Aluminum
    • Length: 1,000mm
    • Weight: 2.5kg
    • Step File

    120 Degree Bracket (2 pack)

    #76080-2
    $17.91
    (204 In stock)

    The 120 Degree Bracket is perfect for connecting two channel pieces at 120 degrees from each other. Each side is 48mm wide to fit perfectly on the channel. Use three brackets with 3 channel pieces to make 3 wheeled robots. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material - Anodized 6061-T6 Aluminum
    • Thickness - 3mm
    • Step File





    135 Degree Bracket (2 pack)

    #76082-2
    $9.64
    (388 In stock)

    The 135 Degree Bracket is perfect for connecting two channels pieces at 45 degrees from each other. Each side is 48mm wide to fit perfectly on the channel. Used for intake systems, elevator systems, or structure where 45 degrees is required. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material - Anodized 6061-T6 Aluminum
    • Thickness - 3mm
    • Step File

    1mm Screw Spacer (25 pack)

    #76309-25
    $5.50
    (1974 In stock)

    Made from delrin in blue, this M3 Screw Spacer has a 3.2mm ID x 5.5mm OD x 1mm thick. Use it for any M3 screw.

    25mm Male to Female Standoff (12 pack)

    #76184-12
    $15.51
    (1436 In stock)

    25mm Standoff (12 pack)

    #76182-12
    $12.39
    (208 In stock)

    2mm Screw Spacer (25 pack)

    #76310-25
    $6.88
    (1970 In stock)

    3mm Pattern Spacer (10 pack)

    #76294-10
    $6.79

    ODΦ20.0mm*ID14.0mm
    *3.0mm thick
    8*Φ3.50mm holes
    10pcs per pack
    Delrin
    Blue

    42mm Standoff (12 pack)

    #76180-12
    $15.56
    (64 In stock)

    Standoffs can be used to space parallel plates, channel, brackets, etc.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thread: M3
    • Length: 42mm
    • Step File

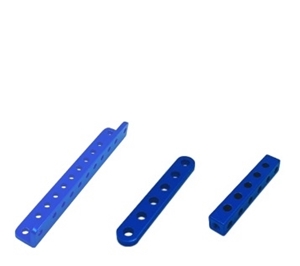

    432mm L-Beam (2 pack)

    #76110-2
    $11.01
    (972 In stock)

    The Studica L-Beam is available in 9 different lengths from 48mm to 432mm. It is strong while light weight. It can be easily cut to your own custom size. The hole pattern matches the hole patterns in the Studica U-Channel, Low Profile U-Channel, and the various plates.

    Specifcations,

    • Material:  6061-T6 Aluminum
    • Length: 432mm
    • Width: 14mm
    • Height: 14mm
    • Thickness: 3mm
    • Hole Diameter: 3.5mm
    • Weight: 0.08kg
    • Step File

    432mm Square Beam

    #76100
    $16.53
    (700 In stock)

    The Studica Square Beam is 8mm by 8mm. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material -  Anodized 6061-T6 Aluminum
    • Holes - 3.5mm diameter spaced 8mm apart
    • Length - 432mm
    • Step File



    432mm x 40mm Flat Bracket

    #76058
    $15.84
    (173 In stock)

    The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Height - 14mm
    • Width - 48mm
    • Length - 432mm
    • Hole pattern - 9
    • Step File



    48mm Standoff (12 pack)

    #76181-12
    $16.53
    (485 In stock)

    Standoffs can be used to space parallel plates, channel, brackets, etc.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thread: M3
    • Length: 48mm
    • Step File

    52mm Standoff (10 pack)

    #76183-10
    $15.51
    (332 In stock)

    Standoffs can be used to space parallel plates, channel, brackets, etc.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thread: M3
    • Length: 52mm
    • Step File

    5mm Screw Spacer (10 pack)

    #76311-10
    $5.50
    (1975 In stock)

    Made from delrin in blue, this M3 Screw Spacer has a 3.2mm ID x 5.5mm OD x 5mm thick. Use it for any M3 screw.

    90 Degree Bracket (2 pack)

    #76081-2
    $9.64
    (1389 In stock)

    The 90 Degree Bracket is perfect for connecting two channels pieces at 90 angle from each other. Each side is 48mm wide to fit perfectly on the channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material - Anodized 6061-T6 Aluminum
    • Thickness - 3mm
    • Step File
