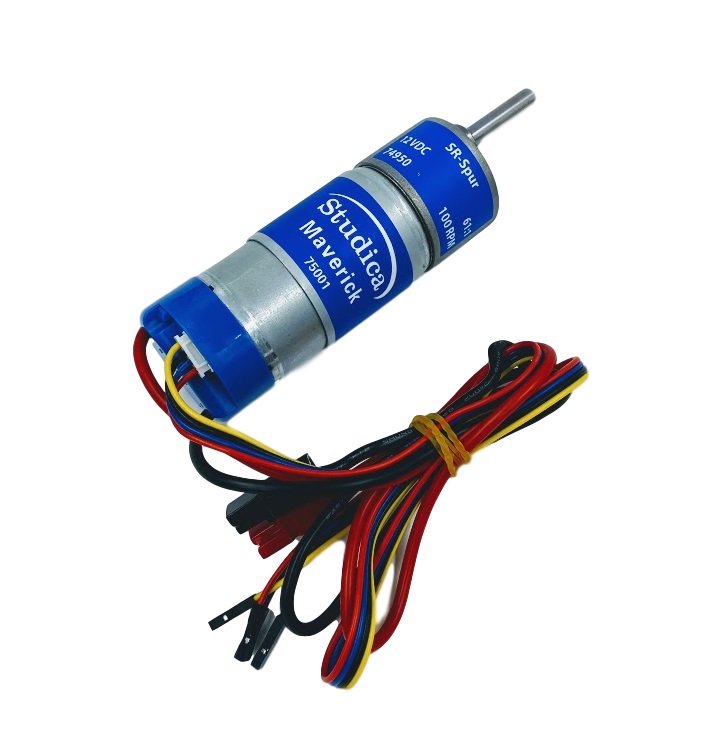

    Maverick 12V DC Gear Motor w/Encoder

    Our improved and  stronger 12-volt DC motor with 100 rpm and 708 oz-in. of torque. The motor features a built-in, high-resolution Hall effect encoder for precise motor control and comes with an encoder cable.



    A 61:1 gearbox comes standard.



    Motor Specs



    Function

    Min

    Nom

    Max

    Input Voltage

    12VDC

    Gear Ratio

    1:61

    No Load RPM

    88

    100

    112

    No Load Current

    600mA

    Rated Speed

    68

    80

    92

    Rated Current

    2.2A

    Rated Torque

    139oz-in

    Stall Current

    11A

    Stall Torque

    708oz-in

    Direction

    CW

    Encoder Voltage

    4

    5

    Encoder Current

    6mA

    Encoder CPR

    6



    Output Counts per Revolution of Output Shaft (cpr) 1,464 pulses



    This motor is not FTC Compeition Legal

    MFR Part #: 75001
    $39.00
    Availability: 774 in stock
