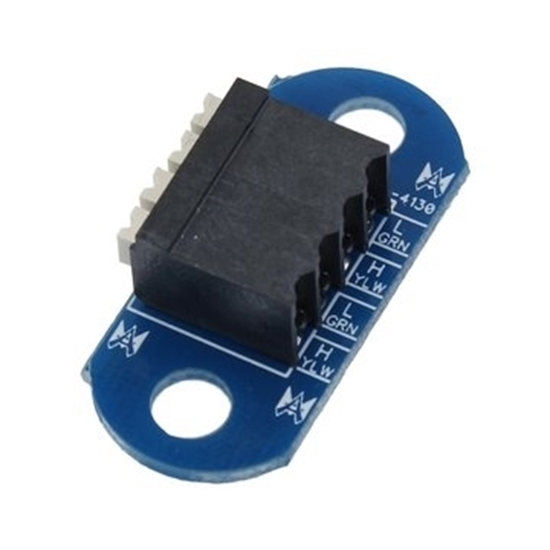

    CAN Connector Board

    Be the first to review this product

    Designed to join together two CAN devices in series. This makes it easy to break the connection to remove robot mechanisms or to help extend the length of your connection.

    MFR Part #: am-4130
    $10.00
    Availability: 5 in stock

    This design orients the connector parallel to the mounting surface for a strain-reduced wirepath. It also features a simple 1 in. mounting pattern perfect for #10-32 screws for easy mounting on the robot. The board has no active traces near the mounting holes, so you can easily just match-drill through the board to translate the hole pattern to your robot with ease! We’re also now offering the correct resistor for CAN setups with FRC control system components (Such as the Talon SRX, Victor SPX, etc) when you are not using the Power Distribution Panel. Perfect for those Hero control system setups for non-FRC use.

    Specifications

    • Hole Size: #10
    • Hole Spacing: 1 in.
    • Weight: 0.009 lbs

    Documents

    CAD File(s)

    am-4130 CAN Connector.STEP

    Layout Print(s)

    am-4130 CAN Connector.PDF
