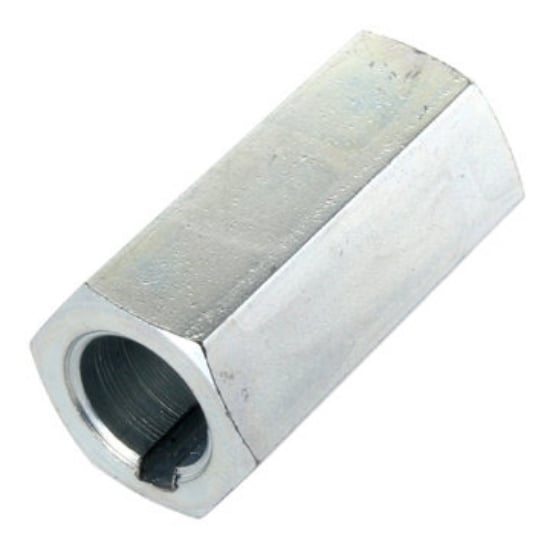

1 in. 8 mm to 1/2 in. Hex Shaft Adapter

Specifications:

• Material: Steel
• Coating: Zinc Plated
• Thread: 10-32
• Length: 3/4"
• Head: Socket Head Cap Screw

Specifications:

• Material: Steel
• Coating: Zinc plated
• Thread: 10-32
• Length: 5/8 inch
• Head: Socket Head Cap Screw
• Yellow Nylon Thread Lock Patch

These custom designed collar clamps have been designed specifically with FIRST Robotics Competition teams in mind. The one-piece collar clamp is a nice fractional 1/2 in. width to make shaft stackups easy. The clamping force is provided by a 10-32 socket head screw, which is bigger than most used in the competition marketplace.  This provides a high-strength clamping solution that shouldn't strip out when you need it most. You can even replace the 10-32 screw if it becomes lost with the screws historically used in the AM14U family of chassis. These thoughtfully designed collar clamps also have small bosses on each side. This allows these collar clamps to be installed directly adjacent to an FR8ZZ Round or FR8ZZ Hex bearing without rubbing on the outer races for smooth operation.

Specifications:

• Material: Steel
• Coating: Zinc plated
• Thread: 1/4-20
• Length: 1/2"
• Head: Button Head Cap Screw

This is a quick and reliable compact connector for flexible conductors. Splicing has never been easier. Lift the orange lever, and insert the conductor, close the lever. The lever clicks as it is lowered, actuating the CAGE CLAMP®, for superior connectivity. This tool-free connection and disconnection makes the connection simple to create and alter in the future.

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. The wheels are sized for an interference fit and tend to stay in place on a shaft, though a shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing.

The hex bore versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:

Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore
• Diameter: 2 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), 60A (Black)
• Hole Pattern: Qty 2 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU
• Maximum RPM: 6000 - 9000
• Weight: 0.035 lb.
• Width: 0.5 in.

Documents

Layout Print(s)

am-3571 2IN 375 Hex Compliant Wheel REV3.PDF

am-3462 2IN 500Hex Compliant Wheel REV3.PDF

am-3572 2IN 8mm Compliant Wheel REV4.PDF

CAD File(s)

am-3571 2IN 375Hex Compliant Wheel REV2.STEP

am-3572 2IN 8mm Compliant Wheel REV2.STEP

am-3462 2IN Molded 500Hex Compliant Wheel REV2.STEP

Additional File(s)

2 inch Compliant Wheel Expansion.pdf

Don't see what you need?

This is a 1/2 in. hex bore bearing that is shielded. This Ball Bearing is a great way to make things spin fast!

Machine Key, steel. Used in 2.5" CIM Motor shafts.

Specifications:

• Width: 2mm (0.078 inch)
• Length: 10mm (0.394 inch)
• Weight: 0.0008 pounds

This retainer clip is used to hold objects (such as gears) in place on shafts.

Example: This product can be used to hold a gear onto a CIM motor shaft.

Specification:

• Material: Steel
• Inner Diameter: 8mm
• Outer Diameter: 15mm
• Weight: Less than 0.001 lbs

We are pleased to offer these new gussets that are suitable for 1" based building systems. These thoughtfully designed gussets are made from 1/8" thick 6061-T6 aluminum, which is a much stronger material than other 0.09" 5052 gussets. All of these framing gussets feature a 1" linear hole pattern, with holes suitable for either #10 screws or 3/16" rivets.

On all of the angle gussets, a generous radius was used on the inside corner for maximum strength. The various angle gussets, along with the quad and tee gusset are used together to create structures and sub-assemblies for your robot. Our bearing and Sport gussets are perfect building blocks to create a massive variety of mechanisms and assemblies to suit your needs.

Specifications

• Hole Pattern: Plates feature 0.20 in. Holes on a 1 in. Center to Center Spacing
• Material: 6061-T6 Aluminum
• Thickness: 0.125 in
