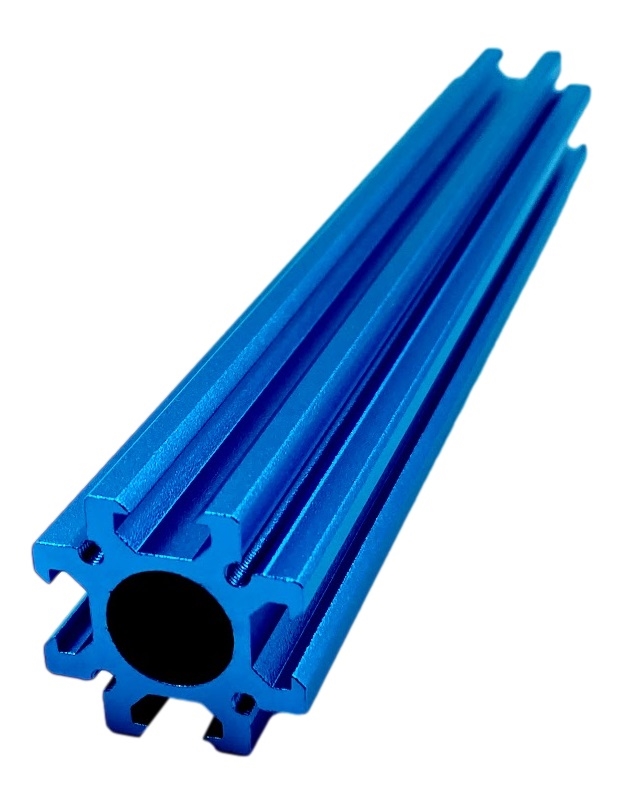

    48mm T-Slot Extrusion

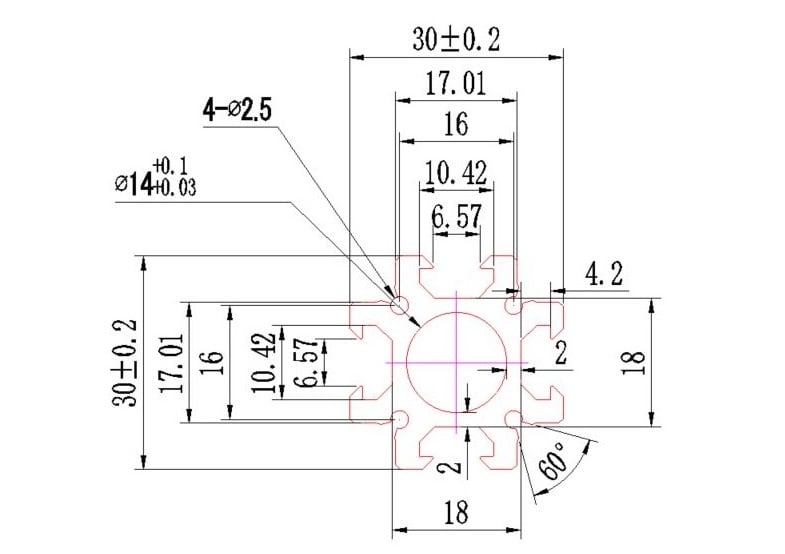

    The Studica T-Slot Extrusion is available in 10 different lengths from 48mm to 1000mm. It is strong while light weight. It can be easily cut to your own custom size. It has a 14mm through hole that will fit the Studica 6mmID x 14mmOD Flanged Bearing or Bronze Bushing. It uses the M3 T-Slot Nut Hammer Head Series 20.  It also has four M3 threaded holes on each end. Use it as structure on infinite applications.

    Specifcations,

    • Material:  6061-T6 Aluminum
    • Length: 48mm
    • Weight: 0.126kg
    • Step File
    MFR Part #: 76128
    $2.76
    Availability: 255 in stock
