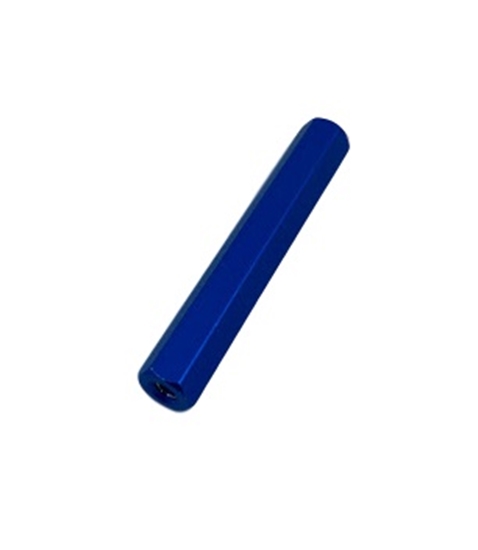

    42mm Standoff (12 pack)

    Standoffs can be used to space parallel plates, channel, brackets, etc.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thread: M3
    • Length: 42mm
    • Step File

    MFR Part #: 76180-12
    $15.68
    Availability: 547 in stock
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    • Bad
    • Excellent
    Customers who bought this item also bought

    NeveRest Classic 60 Gearmotor Anderson Powerpole 15A

    #am-3103
    $44.50
    (In stock)

    The NeveRest 60 is a gearmotor with an attached encoder. The output shaft geometry and the gearbox housing diameter is similar to what FTC teams are familiar with. The shaft is 6mm dia and the gearbox housing is 37mm in diameter

    The power cable which feeds into the black encoder housing has two powerpole connectors already crimped to the end of the cable.

    FTC Legality:


    According to the FIRST Tech Challenge Game Manual Part 1, Rule RE04 this is legal for the 2016-2017 FTC Game.

    Encoder Cable options:


    Encoder cables are not included with this motor, and are sold separately. We have two options:

    1. am-2992 is a cable which has the white 4-pin connector for the encoder and also the black 4-pin connector for the HiTechnic and Modern Robotics motor controller.
    2. am-2993 is a cable which has the white 4-pin connector for the encoder on one end and 4 separate black connectors.

    Encoder:


    There is an encoder mounted to the back side of this motor. It is a 7 pulse per revolution (ppr), hall effect encoder. Since the motor's gearbox has a 60:1 reduction, then the NeverRest 60 output shaft provides 420 ppr.



    Working with the Encoders:



    • https://ftc-tricks.com/dc-motors/
    • https://www.reddit.com/r/FTC/comments/474wks/help_the_different_motor_modes_run_using_encoders/
    • https://www.youtube.com/watch?v=d0liBxZCtrA

    Specifications:
    Physical Specs:

    • Overall Length: 133.5mm (5.26 in)
    • Maximum Diameter: 37mm (1.46 in)
    • Output Shaft size: 6mm (0.24 in) with 0.5mm deep flat
    • Weight: 0.776 pounds
    • Mounting Holes: M3 tapped holes, qty. 6, on a 31mm bolt circle (3.5mm depth MAX, beyond this can damage plate and stop motor)
    • Electrical Connection Geometry: 6-pin connector for motor power and encoder contact
    • Gear Material: Steel
    • Body Material: Steel with plastic encoder housing
    • Lubrication: Included with gearbox
    • Shaft Hardness: 45-50 Rockwell C (https://en.wikipedia.org/wiki/Rockwell_scale)
    • Wire Gauge: 18 AWG

    Theoretical Performance Specs:

    • Gearbox Reduction: 60:1
    • Voltage: 12 volt DC
    • No Load Free Speed, at gearbox output shaft: 105 RPM
    • Gearbox Output Power: 14W
    • Stall Torque: 593 oz-in
    • Stall Current: 11.5A
    • Output counts per revolution of Output Shaft (cpr): 1680 Pulses

    Performance Specs, mounted to AndyMark dyno: Coming Soon

    • Max Speed (under load of dyno):
    • No Load Current (under load of dyno):
    • Stall Current:
    • Stall Torque:
    • Max Output Power:
    • Time to Failure at Stall:
    • Motor Case Temperature at Failure:

    384mm U-Channel

    #76011
    $20.82
    (970 In stock)

    The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Height - 48mm
    • Width - 48mm
    • Length - 384mm
    • Hole pattern- 8
    • Step File



    2" Compliant Wheel, Nub Bore, 35 Durometer Green

    #am-3572_green
    $8.00
    (In stock)

    Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. The wheels are sized for an interference fit and tend to stay in place on a shaft, though a shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing.



    The hex bore versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:



    Compliant Wheel Sizing



    Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.





    Specifications



    • Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore
    • Diameter: 2 in.
    • Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), 60A (Black)
    • Hole Pattern: Qty 2 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
    • Material: TPU
    • Maximum RPM: 6000 - 9000
    • Weight: 0.035 lb.
    • Width: 0.5 in.



    Documents

    Layout Print(s)

    am-3571 2IN 375 Hex Compliant Wheel REV3.PDF

    am-3462 2IN 500Hex Compliant Wheel REV3.PDF

    am-3572 2IN 8mm Compliant Wheel REV4.PDF

    CAD File(s)

    am-3571 2IN 375Hex Compliant Wheel REV2.STEP

    am-3572 2IN 8mm Compliant Wheel REV2.STEP

    am-3462 2IN Molded 500Hex Compliant Wheel REV2.STEP

    Additional File(s)

    2 inch Compliant Wheel Expansion.pdf

    Don't see what you need?

    25mm Standoff (12 pack)

    #76182-12
    $12.49
    (561 In stock)

    0.118 in. Thick 24 in. x 24 in. Polycarbonate Sheet

    #am-0980
    $35.00
    (3 In stock)

    This is a single sheet of 1/8 inch thick polycarbonate (PC) plastic, cut to a 24x24 inch square. This single sheet of PC will be shipped with the protective covering on both sides of the plastic sheet.

    Polycarbonate was invented in 1963 by Dan Fox at General Electric. GE's trade name for this plastic is LEXAN, but it also is sold under other trade names (Makrolon, Hyzod, Cyrolon).

    This material is NOT plexiglas or acrylic, as we don't suggest that you use that material on a mobile robot, since acrylic will easily shatter.

    Specifications:

    • Weight: 2.9 pounds
    • Width: 24 inches
    • Length: 24 inches
    • Material thickness: 0.118 inch
    • Material: Clear Polycarbonate

    110mm All-Terrain Tire w/6mm Adapter

    #76250
    $8.99
    (152 In stock)
    • Diameter: 110mm
    • Width: 45mm
    • Inner diameter of wheel frame: 75mm
    • Hexagon connector: 12mm
    • Unit weight: 128g
    • 6mm axle adapter
