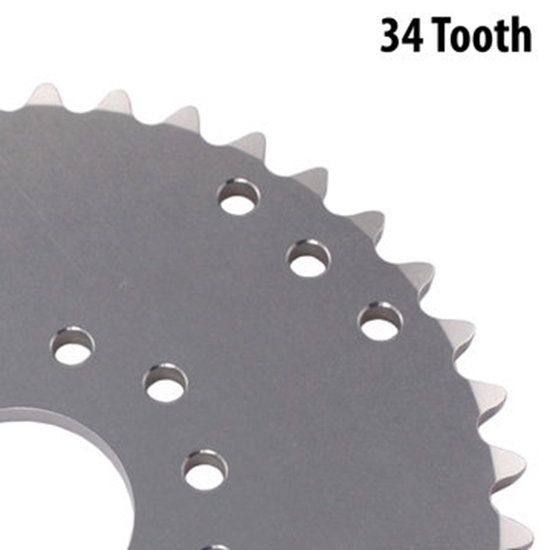

    35 Series Bearing Bore Plate Sprockets 34 Tooth

    11 different offerings of our 35 Series Plate Sprockets. These are perfect for meshing with roller chain and finally getting that-thing-that-you-need-to-spin moving!

    These Aluminum sprockets work perfectly with any of our 6 hole hubs and mesh with #35 roller chain.

    MFR Part #: am-4794
    $23.00
    Availability: 6 in stock

    Specifications

    • Bolt Circle: 0.206 in. diameter holes on a 1.875 in. diameter circle
    • Chain Series: 35
    • Inside Diameter: 1.1245 in.
    • Material: 6061 Aluminum
    • Thickness: 0.168 in.
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    • Bad
    • Excellent

    Specifications

    • Bolt Circle: 0.206 in. diameter holes on a 1.875 in. diameter circle
    • Chain Series: 35
    • Inside Diameter: 1.1245 in.
    • Material: 6061 Aluminum
    • Thickness: 0.168 in.
