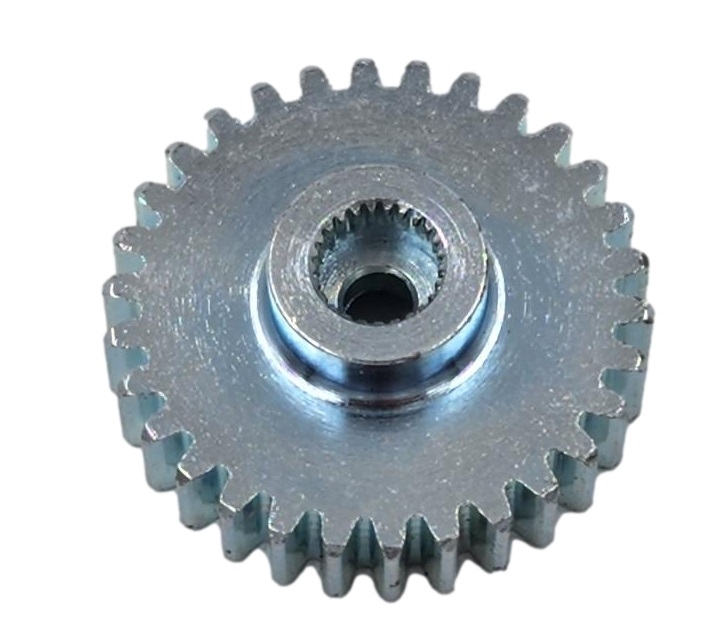

    Servo Spline Gear (25 Tooth Spline, 30 Tooth)

    The Studica 30T Servo 25T Spline Gear is used with the Studica Multi-Mode Smart Servo or Studica Multi-Mode Smart Servo 200.



    Specifications:

    • Material: Steel Hardened, Zinc plated
    • Step File
    MFR Part #: 76153
    $13.81
    Availability: 972 in stock
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    • Bad
    • Excellent
