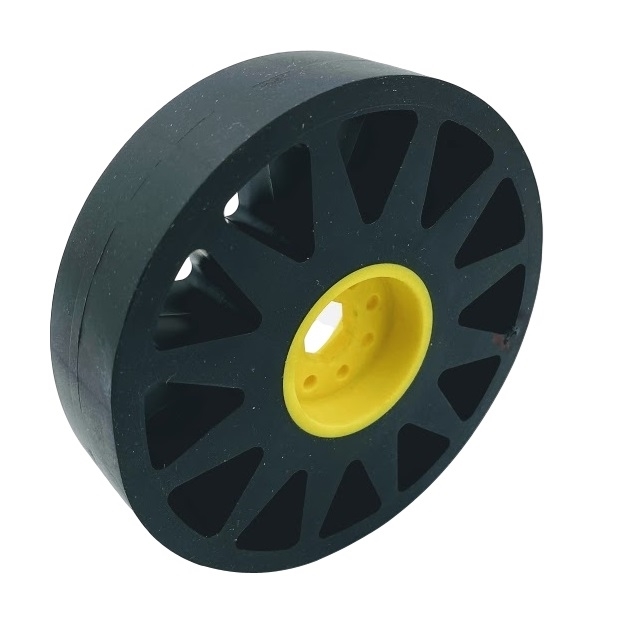

    100mm Flex Wheel - 60A - 25mm wide - 1/2" Inner Hex - Black

    The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

    Specifications:

    • Diameter:   100mm (4")
    • Axial width:  25mm
    • Hub:  1/2" Inner Hex
    • Inner Material: Molded Plastic in Yellow
    • Outer Material: TPU Polyurethane in Black
    • Outer Material Durometer: 60A
    • Weight: 0.038kg

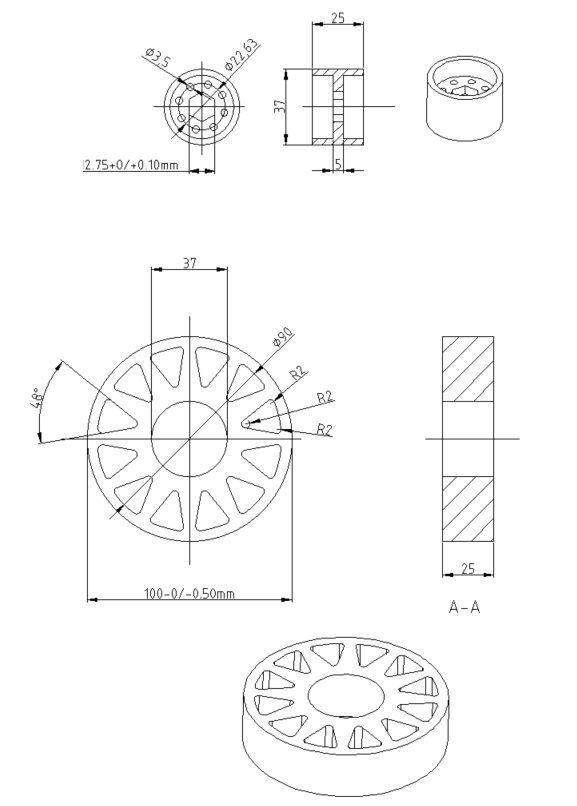

    • Step File
    MFR Part #: 76266
    $11.10
    Availability: 585 in stock
